Product Overview

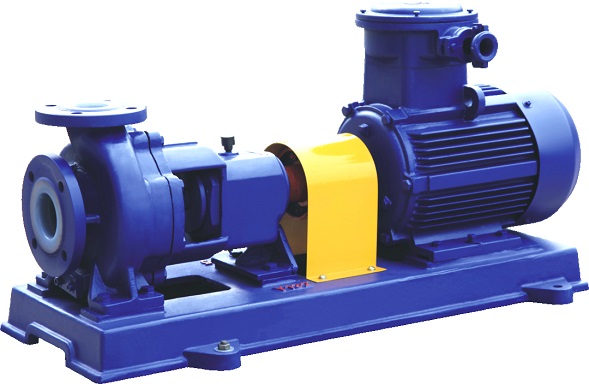

IHF is single stage single suction fluorine plastic alloy chemical centrifugal pump, the pump is in accordance with international standards and process design combined with the production of non-metallic pumps . Pump metal shell lined with poly FEP (F46), pump cover, impeller and shaft sleeve with metal inserts outsourcing fluorine plastic overall sintering pressing , seal with PTFE packing material , import and export are made of cast steel reinforcement . Seal with the most advanced externally mounted PTFE bellows mechanical seal , with multiple layers of protection , extending the life of mechanical seal , when the transport medium containing impurity particles , can be equipped with a single face without cooling water hard to hard ( SiC SiC ) mechanical seal , so the user selection need to take into medium solids content.

Applications
The pump has a corrosion-resistant , wear-resistant , high temperature , aging, high mechanical strength, smooth operation, advanced and reasonable structure , tight sealing performance , reliable, easy to disassemble maintenance, long life and other advantages , widely used in petrochemical metallurgy , synthetic fibers , pharmaceutical, food , brewing and other industrial sectors . Transport all kinds of acid, alkali , salt , oil , beverages, organic solvents.

Technical Parameters
Flow rate : 3.5 ~ 120m3 / h;
Head : 5 ~ 80m;
Speed ??: 1450,2900 r / min;
Power : 0.75 ~ 110kw;
Inlet diameter : 32 ~ 100mm;
Outlet diameter : 25 ~ 80mm;
