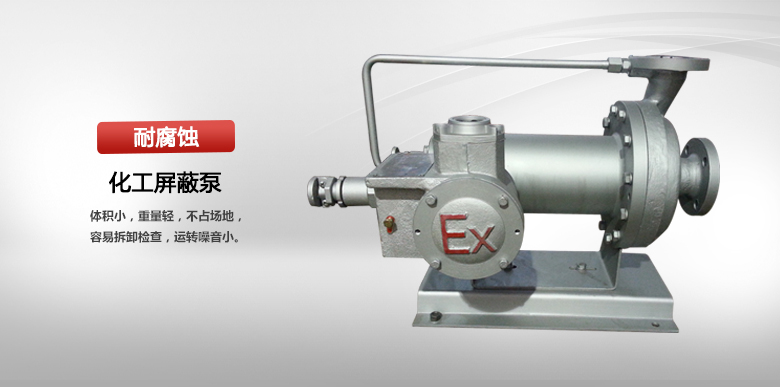

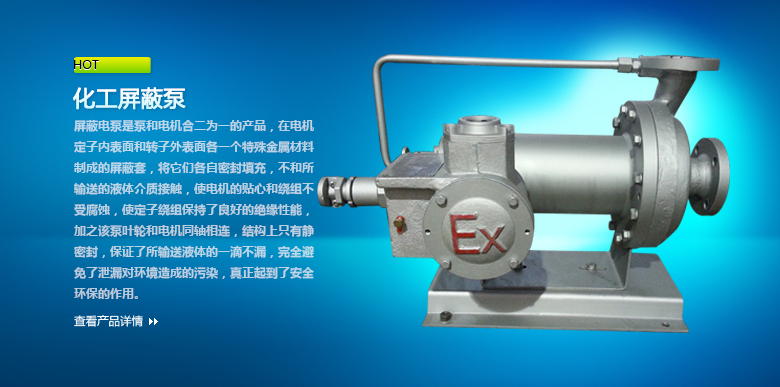

shielding pump is a pump and motor into one of the products, the surface of each of a particular set of metal shielding material, filled and sealed in the stator and the rotor outer surface of their respective , and the liquid medium is not fed contact with the intimate and the motor windings from corrosion , the stator winding insulation to maintain a good performance , coupled with the pump impeller and motor connected to a coaxial , only static seal structure to ensure that not a drop of transmission fluid leak , completely avoid environmental pollution caused by the leak , and really played a role in safety and environmental protection .
Features
1, due to the transmission fluid does not leak to the outside , it applies to harmful liquids, explosive and flammable liquids, corrosive liquids and precious liquids ;
2, due to not breathe the outside air , it applies to the vacuum system operation and contacts with the outside gas liquids can deteriorate ;
3, because no seal , it applies to higher system pressure high-temperature and low-temperature liquid ;
4 , since no oil, transmission fluid does not pollute and avoid oiling trouble ;
5, due to coaxial motor and pump assembly , small size, light weight, does not occupy space , easy disassembly inspection ;
6 , because no cooling fan motor , low noise operation .
Model significance
BA32H - 222H2BM-50-40-160-FV
B - Basic
A - Horizontal Band linker
3 - Material Department
2 - design pressure
H - Flange Standard HG
222 - Motor No.
H - Insulation class H
2 - Voltage distinguish
B - Direct starter with thermal protection
M - on board bearing monitoring
50 - Inhalation diameter Ø50mm
40 - exclude diameter Ø40mm
160 - impeller nominal diameter Ø160mm
FV - with inducer
